100 KVA Pad Mount Peb -Theem Roj-Immered Distribution Transformer



Engineered rau kev txhim khu kev qha nruab nrab-load faib, qhov no 100 kVA ncoo-mounted transformer muaj tooj liab los yog txhuas coil xaiv thiab txhawb ob qho tib si 50 Hz thiab 60 Hz ua haujlwm. Nws compact hneev taw txo qhov chaw yuav tsum tau.

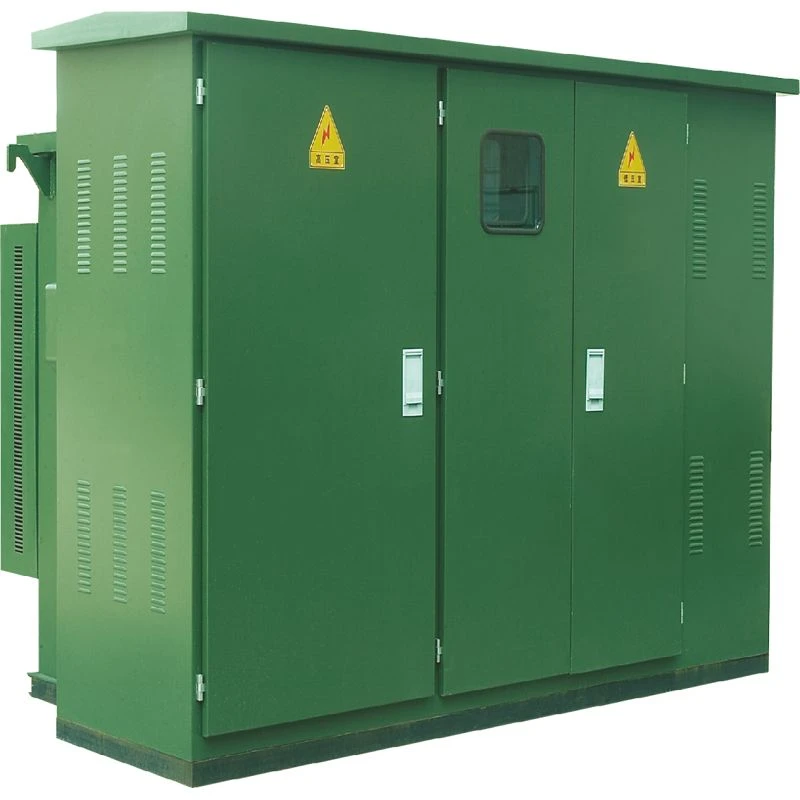

ZBW-12/0.4 pre-ntsia substation yog hom American-style prefabricated box-hom substation. Raws li ib qho kev sib xyaw ua ke ntawm cov khoom siv prefabricated, nws sib txuas cov kab hluav taws xob ntawm cov khoom siv hluav taws xob faib hluav taws xob, cov khoom siv hluav taws xob siab thiab kev tiv thaiv, cov khoom siv hluav taws xob, thiab cov khoom siv hluav taws xob. Nws yog dav siv nyob rau hauv nroog thiab nyob deb nroog fais fab kev faib network.

Cov khoom yog nruab nrog siab -voltage load switches thiab siab -voltage fuses nyob rau hauv lub transformer roj tank, thiab muaj ob yam qauv: integrated transformer tank thiab cais transformer tank. Lub tank txais cov qauv kaw tag nrho, thiab tau nruab nrog cov ntsuas roj kub, ntsuas roj qib ntsuas, ntsuas ntsuas siab, lub siab tso tawm li qub, cov dej ntws tawm, thiab lwm yam khoom siv los saib xyuas kev ua haujlwm ntawm lub tshuab hloov pauv.

Raws li hom fais fab mov, cov khoom tau muab faib ua lub nplhaib network hom thiab hom davhlau ya nyob twg. Txhawm rau ua kom cov khoom no tsim nyog rau cov kev xav tau tiag tiag ntawm Tuam Tshoj txoj kab hluav taws xob, peb lub tuam txhab kuj tau pib ntsaws- hom fuses, uas tsis cuam tshuam rau kev ua haujlwm ntawm cov roj transformer.

Raws li qhov nyuaj ntawm qis-voltage outgo circuits, ZBW-12/0.4 cov khoom tau muab faib ua peb hom txee: hom qauv, hom kev txhim kho, thiab hom dav. Qhov no tso cai rau cov neeg siv thiab cov qauv tsim ua kom hloov tau yooj yim dua thiab raug nqi xaiv.









• Siv ZBW series ua piv txwv, tus qauv yog sawv cev raws li ZBW - 12/0.4 - □ - □ - □.
• Thawj ntu "ZBW" qhia txog prefabricated substation.
• "12/0.4" sawv cev rau qhov ntsuas voltage, nrog 12kV rau sab siab - voltage thiab 0.4kV rau sab qis - voltage.
• Cov thawv tom ntej no qhia txog qhov siab - qhov ntsuas qhov ntsuas hluav taws xob ntawm qhov ntsuas hluav taws xob (KV), qis - ntsuas qhov ntsuas hluav taws xob ntsuas hluav taws xob (KV), thiab ntsuas qhov muaj peev xwm ntawm qhov hloov pauv (KVA).










1. Cua txias: Cua tus kheej - cua txias
2. Kev ua haujlwm ib puag ncig:
Qhov kub nyob sab nraum zoov yuav tsum tsis txhob siab tshaj 40℃lossis qis dua -45 degree; qhov siab yuav tsum tsis pub tshaj 1000m; lub hli nruab nrab kub yuav tsum tsis txhob ntau tshaj 30 degree; Qhov nruab nrab txhua xyoo kub yuav tsum tsis pub tshaj 20 degree.
Ntawm 25 degree, tus txheeb ze av noo ntawm huab cua yuav tsum tsis txhob ntau tshaj 95%, thiab lub hli nruab nrab cov av noo yuav tsum tsis pub tshaj 90%.
Kab rov tav acceleration yuav tsum tsis pub tshaj 0.3g; ntsug acceleration yuav tsum tsis pub tshaj 0.15g.
Lub installation ib puag ncig yuav tsum tsis pub muaj kuab paug pom tseeb, nrog rau cov pa phem lossis corrosive gases thiab plua plav. Lub chaw teeb tsa yuav tsum tsis txhob muaj kev vibration hnyav thiab cuam tshuam, thiab cov khoom siv yuav tsum tau nruab rau ntawm lub cement platform lossis lwm lub tiaj tiaj, cov khoom siv.
3. Nco tseg: Yog hais tias cov kev npaj siv rau deviate los ntawm cov saum toj no technical specifications, tus neeg siv yuav tsum sib tham nrog lub tuam txhab.









1. Cov qauv compact thiab me me: Nws ntim tsuas yog li 1/3 txog 1/5 ntawm cov European sab hauv-style box- hom substations nrog tib lub peev xwm, txo qis hauv pem teb.

2. Lub kaw lus kaw tag nrho thiab cov qauv insulated tag nrho: Nws yuav tsum tsis muaj qhov cuam tshuam ntawm kev rwb thaiv tsev thiab muab kev tiv thaiv kev ruaj ntseg ntawm tus kheej.

3. Saj zawg zog siab -voltage kev twb kev txuas thiab lub hwj huam mov hom: Lub siab -voltage kev twb kev txuas yuav siv tau rau ob lub nplhaib network thiab davhlau ya nyob twg kev twb kev txuas, featuring saj zawg zog mov hom thiab muaj kev ntseeg siab.

4. Kev ua tau zoo ntawm transformer: Lub transformer muaj kev ua tau zoo heev, nrog kev poob qis, tsis tshua muaj suab nrov, thiab kub tsis tshua muaj siab. Nws kuj tseem muaj zog tshaj qhov muaj peev xwm, nrog rau luv luv -circuit thiab cuam tshuam.

5. Adaptable rau qis-voltage outgoing yuav tsum tau: Nws muaj peev xwm ua tau raws li qhov yuav tsum tau ntawm ntau yam low-voltage outgo circuits, thiab tuaj yeem xaiv raws li cov txheej txheem uas twb muaj lawm lossis kho raws li qhov xav tau.

6. Ob hom kev sib txuas ntawm cable muaj: Muaj ob txoj hauv kev rau kev sib txuas cable: cable taub hau ntsaws thiab 200A / 600A luj tshib- hom "T"- zoo li cov kab txuas txuas txuas. Lub siab insulated zinc oxide ntes tuaj yeem teeb tsa; lub 200A cable taub hau txhawb nqa nyob ntsaws thiab ua haujlwm raws li kev hloov pauv.







1. Cov khoom nta me me, cov qauv compact, thiab yooj yim installation.
2. Nws tuaj yeem siv rau ob lub nplhaib network thiab daim ntawv thov davhlau ya nyob twg, thiab muab kev tiv thaiv kev nyab xeeb ntawm tus kheej.
3. Cov khoom muaj kev poob qis, tsis tshua muaj suab nrov, thiab kev ua haujlwm zoo dua.
4. Lub txee txais kev tiv thaiv- qauv tub sab.
5. Nws kuj muaj qhov kub tsis tshua muaj siab thiab muaj zog tshaj qhov muaj peev xwm.










● Foundation Bearing Peev Xwm thiab Kev Tiv Thaiv
Lub hauv paus muaj peev xwm yuav tsum tsis pub tsawg tshaj 100 kPa.

-Yog hais tias lub hauv paus nyob rau hauv highlands, yuav tsum tau muab tso rau sab nraud qhov chaw nyob ib ncig ntawm nws.

-Lub hauv paus yuav tsum tau ua nrog liab cib cement mortar, thiab ob sab hauv thiab sab nrauv phab ntsa yuav tsum tau plastered nrog 20mm-tick 1:2 cement mortar tov nrog 3% waterproofing tus neeg saib xyuas los txhim kho waterproofing.

- Lub hauv paus pob zeb yuav tsum tiaj tus, thiab tom qab kev teeb tsa ntawm prefabricated substation, lub hauv paus ib puag ncig yuav tsum muab khi nrog cov cement.



● Cov qauv thiab cov khoom sib txuas

-Lub hauv qab ntawm lub cable chamber yuav tsum yog me ntsis inclined mus rau cov dej sau cov yeeb nkab kom tsis txhob muaj dej tsub zuj zuj.

-Ib pob zeb diamond- zoo li cov hlau mesh nthuav dav (150 × 300 thav duab, 10 × 20 mesh loj) yuav tsum tau welded rau hauv lub louver thav duab, nrog cov pob zeb txuas ntxiv rau hauv phab ntsa kom txhim kho lub zog.

-Grounding bars thiab cable fixing brackets yuav tsum tau ua ntej -embedded, thiab lawv cov duab thiab txoj hauj lwm yuav tsum tau txiav txim raws li lub site tiag tiag.

--Txoj haujlwm ntawm qhov nkag thiab tawm cable qhov yuav tsum tau txiav txim siab raws li qhov xav tau ntawm qhov chaw.



● Kev ua haujlwm thiab chaw

Tom qab kev teeb tsa ntawm lub prefabricated transformer substation, kev khiav hauj lwm clearance ntawm tsis pub tsawg tshaj 1.5m yuav tsum tau tshwj tseg nyob rau hauv pem hauv ntej ntawm kev hloov mus rau lub lag luam thiab kev nyab xeeb.



● Grounding System

- Lub pob zeb hauv av yuav tsum tau coj tawm ntawm lub trench cable, thiab tej zaum yuav tau teem ib ncig ntawm lub nplhaib tseem ceeb los yog txuas mus rau hauv av electrode los ntawm ib sab.

- Daim phiaj hauv av yuav tsum tsim nrog Φ12mm galvanized round steel lossis 30 × 4mm galvanized ca steel.

- Kev tiv thaiv hauv av yuav tsum tsawg dua lossis sib npaug ntawm 4Ω, ua raws li cov cai ntawm lub hwj chim txoj cai.



● Kev tsim qauv thiab kev ua kom yooj yim

-Kev tsim kho hauv paus yuav tsum ua raws li JGJ/T16-92 "Code for Electrical Design of Civil Buildings".

-Qhov loj me uas pom hauv cov duab kos yog qhov pom zoo. Cable qhov dej tuaj yeem teem rau hauv peb lossis plaub cov lus qhia raws li qhov chaw nyob kom tau raws li cov kev xav tau sib txawv.








S/N	Lub npe	Chav tsev	Technical Parameter
1	Rated Voltage	KV	10/0.4
2	High-voltage Sab Rated Voltage	KV	10
3	Tsawg-voltage Sab Rated Voltage	KV	0.4
4	Kev khiav hauj lwm voltage (High voltage sab)	KV	12
5	Rated Zaus	Hz	50
6	Rated Peev Xwm	KVA	150-1600
7	Siab -voltage Hloov Thaum tshav kub kub ruaj khov muaj peev xwm	KA	20/26
8	Tsawg-voltage Main Circuit Breaker Rated Short-Circuit Breaking Capacity	KA	35
9	Tsawg-voltage Distribution Circuit Breaker Rated Short-Circuit Breaking Capacity	KA	35
10	High -voltage Load Hloov Hloov Tam Sim No	A	>1500
11	1 min Fais Fab Zaus Nrog Voltage	KV	35
12	Hluav taws xob Impulse Voltage	KV	75
13	Txias hom	-	Roj rau tus kheej -txias
14	High -voltage Backup Fuse Breaking Current	KA	50
15	Kev tawg tam sim no ntawm Plug- hauv Fuse	KA	2.5
16	Ambient Kub	degree	-35 ~ +40
17	Coil Allowable Kub nce	K	65
18	Tsis muaj -load Voltage Regulation	%	± 5% lossis ± 2.5%
19	Lub suab nrov	dB	<50
20	Kev Tiv Thaiv Qib ntawm Box Plhaub	-	Tsis tsawg dua IP3X



Rwb thaiv tsev Level

Rated voltage (KV)	10			0.4
	Hloov pauv	Hloov mus rau hauv av thiab theem mus rau theem	Nruab nrab ntawm disconnectors
Fais fab zaus withstand voltage (KV)	35	42	48	2.5
Peak tus nqi ntawm impulse withstand voltage (KV)	75	75	85	–









Xaiv tshiab S9 series transformer lub cev, tsis tshua muaj poob, zoo tshaj lub peev xwm, muaj zog luv luv -circuit resistance, tag nrho cov fasteners tiv thaiv. S11 series nplhaib sib koom ua ke tsis muaj tub ntxhais transformer nrog kev ua tau zoo dua tuaj yeem raug xaiv.



Lub peev xwm KVA	Voltage KV		Koom nrog pawg sau npe	Tsis muaj -load tam sim no %			Tsis muaj load poob W			Qhov voltage impedance%	Load poob
	Siab nruj	Tsawg siab		S9	S10	S11	S9	S10	S11
160	10 ± 5% lossis 2 × 2.5%	0.4	Dyn11 Yog	1.4	1.4	0.2	400	320	255	4.0	2200
200				1.3	1.3	0.2	480	380	305		2600
250				1.2	1.2	0.2	560	450	360		3050
315				1.1	1.1	0.2	670	530	425		3650
400				1.0	1.0	0.15	800	650	505		4300
500				1.0	1.0	0.15	960	750	605		5100
630				0.9	0.9	0.15	1200	910	755		6200
800				0.8	0.8	0.15	1400	1080	980		7500
1000				0.7	0.7	-	1700	1260	-	4.5	10300
1250				0.6	0.6	-	1950	-	-		12000



Yam khoom npe		Chav tsev	315A	630A
Rated voltage		KV	12	12
Qhov siab tshaj plaws tam sim no		A	315	630
Rated zaus		Hz	50	50
Rated luv -circuit kaw tam sim no		kA	31.5	50
Rated luv -lub sij hawm tiv taus tam sim no		kA	12.5	50
Rated luv endurance lub sij hawm		S	2	2
Neeg kho tshuab lub neej		Thib ob - tus nqi	2000	2000
xob laim impulse test	Phase rau theem	KV	75	75
	Kev rho tawm pob txha		85	85
1min zog zaus withstand voltage	Phase rau theem	KA	42	42
	Kev rho tawm pob txha		48	48
Rated ncov tiv taus tam sim no		KV	31.5	50



Muaj peev xwm	A	B	C	H	Nyhav KG
200kVA thiab qis dua	1830	1420	820	1850	＜ 2800
250-400 kVA	1830	1450	850	1980	3000-3300
500-630 kVA	1830	1480	880	2070	3600-3950
800kVA ua	2200	1700	950	2170	4500

Lus Cim: Cov saum toj no yog tus qauv loj rau kev siv.



Muaj peev xwm	A	B	C	H	Nyhav KG
315 kVA ua	2560	1600	600	1000	3050
400kVA ua	2560	1600	600	1000	3270
500kVA ua	2560	1600	600	1000	3400
630kVA ua	2560	1600	600	1000	3900
800kVA ua	2760	1600	800	1000	4200
1000kVA ua	2760	1950	800	1000	4800
1250kVA ua	2910	1950	800	1000	5400
1600kVA ua	2200	1700	950	2170	4500

Lus Cim: Cov saum toj no yog tus qauv loj rau kev siv.
